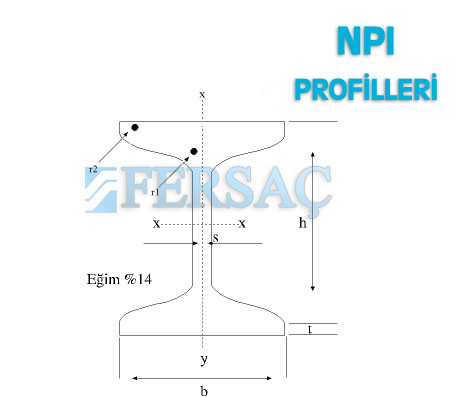

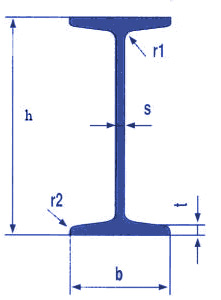

Kısa İşaretler I | Ağırlıklar Kg/m | Boyutlar (mm) | |||
| h | b | s | t | ||
| 80 | 5.94 | 80 | 42 | 3.9 | 5.9 |
| 100 | 8.34 | 100 | 50 | 4.5 | 6.8 |
| 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| 240 | 26.2 | 240 | 106 | 8.7 | 13.1 |
| 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| 280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| 320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| 360 | 76.1 | 360 | 143 | 13.0 | 19.5 |
| 380 | 84.0 | 380 | 149 | 13.7 | 20.5 |
| 400 | 92.4 | 400 | 155 | 14.4 | 21.6 |
| 425 | 104 | 425 | 163 | 15.3 | 23.0 |
| 450 | 115 | 450 | 170 | 16.2 | 24.3 |
| 475 | 128 | 475 | 178 | 17.1 | 25.6 |
| 500 | 141 | 500 | 185 | 18.0 | 27.0 |
| 550 | 166 | 550 | 200 | 19.0 | 30.0 |
| 600 | 199 | 600 | 215 | 21.6 | 32.4 |
MALZEME KALİTELERİ
- TS 2162 – SFe 37.2, SFe 44.2 ve SFe 52.3
- DIN 17100 RSt 37.2, RSt 44.2 ve RSt 52.3
- S235JR/10025, S275JR/10025 ve S355JR/10025
